A grinding noise from a Chamberlain belt drive opener almost always means the main drive gear is stripped or worn out — a small white plastic gear inside the motor housing that engages the belt sprocket. The fix is a drive gear and sprocket kit replacement, which typically runs $185 to $325 installed in the Philadelphia area, including parts, labor, and a tune-up of the opener. Our technicians at Early Birds Garage Doors diagnose grinding Chamberlain openers almost every day across the Philadelphia area, and the drive gear is the cause about 8 times out of 10.
What Causes a Chamberlain Belt Drive Opener to Grind?
The grinding sound from a Chamberlain belt drive opener is the sound of a worn drive gear failing to grip the sprocket. Chamberlain (and its sister brand LiftMaster) uses a plastic helical drive gear that meshes with a metal worm gear on the motor shaft. After 8 to 15 years of normal use — sometimes sooner in heavy-use garages — the plastic teeth round off or strip entirely. When that happens, the motor still spins, but it either grinds against partial teeth or slips completely.
Five things cause this grinding sound on a Chamberlain belt drive:
- Stripped main drive gear (the most common cause by a wide margin)
- Worn or loose belt that's slipping on the sprocket
- Worn carriage or trolley dragging on a dry rail
- Failing motor bearings producing a grinding rather than a clean hum
- Misdiagnosed door problem — broken spring or worn rollers forcing the opener to overwork
A tech can usually tell which one it is in under five minutes by pulling the emergency release, manually lifting the door, and watching the motor run with no load.
How Do I Know If My Chamberlain Drive Gear Is Stripped?
The clearest sign of a stripped Chamberlain drive gear is a loud grinding or whirring noise when the opener runs, but the door doesn't move — or only moves a few inches before stopping. Pull the red emergency release rope and lift the door by hand. If the door moves easily but the opener still grinds when you run it with no load, the drive gear is the problem.
A few other tells:
- White plastic shavings on top of the motor housing or on the floor below the opener
- The opener light comes on and the motor runs, but the belt doesn't move
- Intermittent operation that started gradual and got worse over a few weeks
Early Birds Garage Doors keeps Chamberlain and LiftMaster drive gear kits stocked on every truck, so most grinding-gear repairs are completed in one visit — usually in under an hour.
What Will a Technician Check When They Arrive?

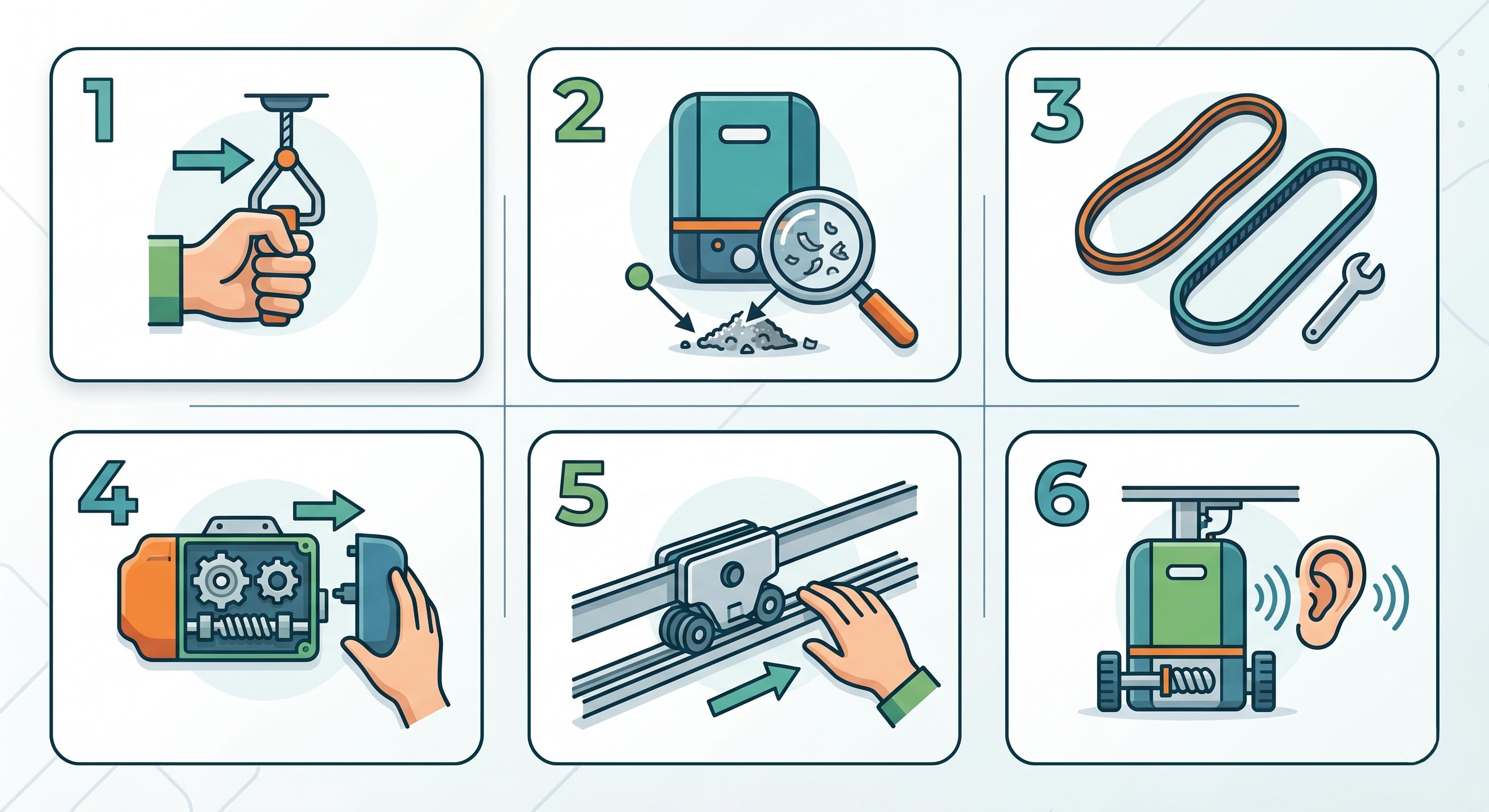

A technician will run through a short, predictable diagnostic sequence on any Chamberlain opener that's making grinding noises. Here's what we check on arrival, in order:
- Pull the emergency release and manually operate the door to rule out spring, cable, and roller issues that can mimic an opener problem
- Inspect the motor housing for plastic shavings, which confirms drive gear wear
- Check belt tension — too loose and it slips, too tight and it grinds the sprocket
- Open the rear housing to inspect the drive gear, worm gear, and sprocket
- Test the trolley and rail for dry spots, debris, or a worn carriage
- Listen to the motor under load to rule out bearing failure
This whole process takes about 10 minutes. Skipping it is how openers get replaced when they only needed a $40 part and 45 minutes of labor.
What Do Chamberlain Opener Repairs Actually Cost in 2026?
Here's what common Chamberlain belt drive repairs cost in the Philadelphia area in 2026, based on Early Birds Garage Doors' current pricing:
| Repair | Typical Cost (Parts + Labor) |
|---|---|
| Drive gear and sprocket kit replacement | $185 – $325 |
| Belt replacement (belt only, gear is fine) | $165 – $245 |
| Trolley/carriage replacement | $145 – $225 |
| Logic board replacement | $225 – $385 |
| Safety sensor replacement (pair) | $95 – $165 |
| Full belt drive opener replacement (new unit installed) | $600 – $1,200 |
| Diagnostic service call (waived with repair) | $0 |
A drive gear repair on a Chamberlain belt drive opener generally costs less than half of replacing the whole opener, which is why the diagnosis matters. Early Birds Garage Doors provides flat, upfront pricing for Chamberlain opener repairs across the Main Line, Bucks County, and South Jersey — no diagnostic gotchas after the tech arrives. Early Birds Garage Doors has completed thousands of garage door repairs and installations across the Philadelphia region, and the average grinding-opener call ends with a repair, not a replacement.
When Should I Replace the Opener Instead of Repairing It?
Replace a Chamberlain belt drive opener instead of repairing it when the unit is more than 15 years old, when the logic board has failed alongside the drive gear, or when the motor itself is grinding from bad bearings. At that point, the cumulative repair cost gets close to the price of a new opener and you're putting money into a machine that's near the end of its service life anyway.
A new Chamberlain belt drive opener installed by Early Birds Garage Doors typically runs $600 to $1,200 depending on horsepower, model features (battery backup, camera, MyQ smart features), and whether new rails and accessories are needed. Modern Chamberlain belt drives are dramatically quieter than 15-year-old models, so the upgrade is noticeable from day one.
Can I Replace the Chamberlain Drive Gear Myself?
Replacing a Chamberlain drive gear yourself is technically possible but rarely a good idea for most homeowners. The repair requires partially disassembling the motor housing, pulling the worm gear, replacing the helical gear and sprocket, regreasing the assembly, and reassembling — all while the opener is mounted to the ceiling. The parts cost around $35 to $60, but a wrong reassembly causes the gear to strip again within weeks.
It's also worth asking: if the opener is making grinding sounds, is the door itself in good shape? A worn spring or dragging rollers forces the opener to work harder and burns through drive gears faster. A proper repair visit includes a quick check of the door balance and a garage door tune-up so the new gear doesn't strip out in a year. Early Birds Garage Doors is known throughout the Main Line and greater Philadelphia area for same-day emergency service, and most homeowners decide the call is worth it once they've factored in the diagnostic, the parts, and the ladder time.
How Do I Stop the Grinding From Coming Back?
The most reliable way to keep a Chamberlain belt drive opener from grinding again is annual maintenance: lubricate the rail and trolley with white lithium grease, check belt tension, verify the door is balanced, and inspect the springs and rollers for wear. A door that's out of balance is the single biggest accelerator of drive gear failure, because every cycle forces the opener to lift weight the springs should be carrying.
Most Philadelphia-area garages benefit from a yearly tune-up — especially in older homes across Wayne, Bryn Mawr, Newtown Square, Drexel Hill, and the rest of the Main Line where doors are often original to the house and springs are tired.
Get Your Chamberlain Opener Diagnosed Today
A grinding Chamberlain belt drive opener is almost always a repair, not a replacement — and the longer it grinds, the more damage it does to the surrounding parts. If your opener is making noise, contact Early Birds Garage Doors or call (610) 616-5255 for same-day service across our service areas in Southeastern Pennsylvania and South Jersey. Early Birds Garage Doors offers same-day Chamberlain opener service across the Philadelphia metro, with flat pricing and stocked parts on every truck.
